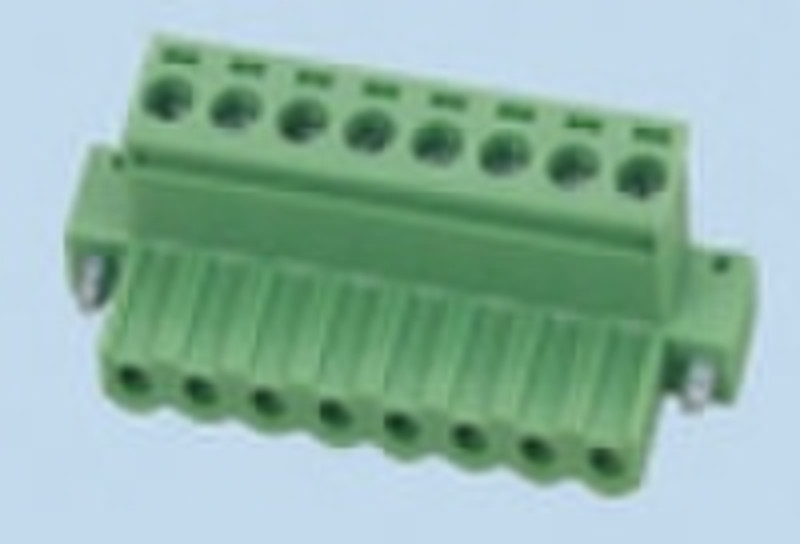

Pluggable Terminal Block KF2EDGKM
Guorui Huang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | KEFA |
| Model Number | KF2EDGKM |
Pluggable Terminal block ,Specification: 1)Pitch:5.0mm,5.08mm 2)Poles:2P 24P 3)Contact:Phosphor bronze plated 4)Wirecage:Brass,Ni plated or steel zinc plated 4) Housing:PA66.UL94-0 5)Screw:M2.5.Steel zince plated 5)Rated voltage:300V 6)Rated current:15A 7)Contact resistance:20mΩ 8)Insulation resistance:5000MΩ/1000V 9)Voltage withstanding cappability:AC1500V/Min 10)Temperature range:-40oC +130oC 11)Wirerange:28-12AWG Widely used in telecommunication equipment, computers, controllers, alarm security, appliance instruments and other fields
Delivery terms and packaging
Packaging Detail: export carton Delivery Detail: 20days
Port: Ningbo,shanghai
